Sinotruk Howo 20m3 Fuel Tanker Truck 6x4 371hp With Flow Meter
Euro II Tank volume 20m3 Sinotruk Howo 6x4 371hp Fuel Tanker Truck
For Oil Transportation
Sinotruk Howo 6x4 371hp Fuel Tanker Truck Descriptio
1 All the bodies adopt integral steel-framed structure, hard and
firm, allowing high collision resistance and external force
resistance.
2 Automatic painting line consisting of robots ensuring the body
appearance quality, corrosion prevention and weather resistance,
increasing the effective more than 2 times compared to the
conventional electrophoresis painting and allowing higher salvage
value of vehicle.
3 Cab manufactured by the welding line composed by international
advanced robots, safety and reliable top-level quality in China.
4 Each safety performance index completely meeting the latest legal
requirements of China , comprehensively enhancing the safety.
Applications
Custom Design – Fuel Tanker truck is built to your unique specs
ensuring you receive a truck that fits into your fleet.
Extensively Tested – All quip puts all trucks through a rigerous
testing process to ensure all parts and components are working
properly.
Load Distribution – CAD drawings and load distribution software is
used in the design process to ensure the tank is placed correctly
for optimum load distribution.

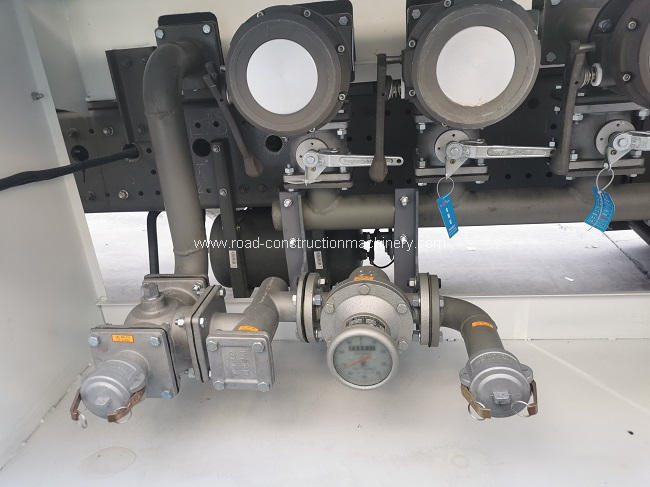

Equipped with 3 European standard manhole covers, 3 subsea valves,
with flow meter, with pipe box, 2 pieces of oil pipeline, One fire
extinguishing cap, two 1.5kg dry powder fire extinguishers, with
large explosion-proof cover, three 4-inch discharge valves, wax
spraying for the vehicle, and two free-flow ports at the rear of
the tank
Flexible installation options – Truck mounted tanks are engineered
in order to attain correct axle weight distribution tailored to any
truck specifications.
Easy maintenance For quick and trouble-free maintenance, our
systems feature bolted-on components and conveniently located
external water ways.
High Grade Polyethylene tanks result in a stronger, lighter, lower
centre of gravity tank,
Tank is fully CCC,SGS & ISO stabalised with impregnable colour
allowing for nil maintenance,
Suitable for Potable water and dense and corrosive liquids,
Frames and pipe-work are hot dip galvanised to counterpart the
incredible lifespan of the tank.welcome to contact us get good
price.
Sinotruk Howo 6x4 371hp Fuel Tanker Truck Specification
| Chassis |
| Model | ZZ1257S4641W |
| Driving type | Left hand drive |
| Overall dimensions | 10000×2490×3350 (mm) |
| Cube Weight | 11330kg |
| Wheel base | 4600+1350mm |
| Max speed | 102km/h |
| Cabin | HW76 with 1 sleeper and air conditioner |
| Engine | WD615.47, 371 horse power, Euro II emission standard |
| Transmission | HW19710, 10 forward and 2 reverse |
| Front axle | HF9 |
| Rear axles | HC16 |
| Steering | ZF8118 |
| Tyres | Triangle 12.00R20 |
| Fuel tank | 400 liters |
| ABS | Without ABS |
| Bumper | High bumper suitable for rough road |
| Tank Body |
| Tank volume | 20m3 |
| Compartments | 3 |
| Tank material | carbon steel Q235 |
| Tank thickness | 5mm |
| End plate | 6mm |
| Equipped with | 3 European standard manhole covers, 3 subsea valves, with flow
meter, with pipe box, 2 pieces of oil pipeline, One fire
extinguishing cap, two 1.5kg dry powder fire extinguishers, with
large explosion-proof cover, three 4-inch discharge valves, wax
spraying for the vehicle, and two free-flow ports at the rear of
the tank |

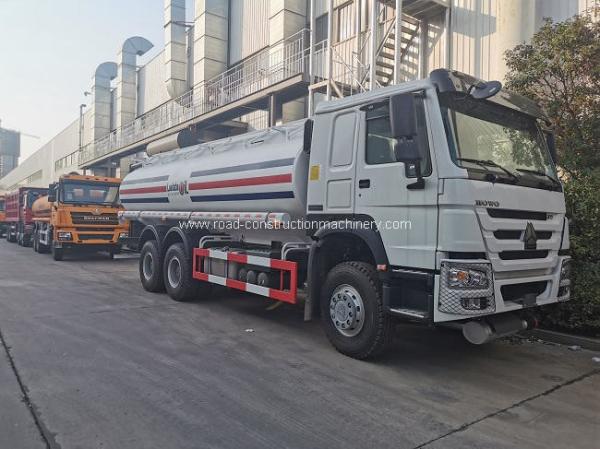

Sinotruk Howo 6x4 371hp Fuel Tanker Truck pictures
