    Vehicle Weight 25000kg Sinotruk Howo 6x4 371hp 30 Ton Capacity Heavy Cargo Truck

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : ZZ1257N5847W
    Certification : CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Vehicle Weight 25000kg Sinotruk Howo 6x4 371hp 30 Ton Capacity Heavy Cargo Truck

    Sinotruk Howo 6x4 371hp Left Hand Heavy Duty Cargo Truck 30 Ton Capacity
    Cargo truck is mainly designed for transporting goods. We have 4X2, 6X2, 6X4, 8X4 available, which are widly used in transporation.
    Engine capacity options: 266hp, 290hp, 336hp, 371hp and 420hp.
    Competitive Advantage:
    High Safety
    1. Four independent braking systems
    Our cargo trucks adopt four direct-operated pneumatic braking systems (front axle brake, rear axle brake, parking emergency brake,
    engine auxiliary brake) with automatic clearance adjustment. It is equipped with modem brake devices like ABS to make your driving highly reliable and safe.
    2. Wide-angle rear view mirror
    The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility, further assuring driving safety.
    Aesthetic Design
    Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.
    Luxury and stylish integral bumper, elegant high-brightness headlights.
    New soft interior and dashboard are both aesthetic and practical; detachable combination instrument is convenient to repair and maintain.
    Electric window regulator, central electric control door lock
    Low Fuel consumption
    Low fuel consumption: 1200-1200 turn over wide economic speed low fuel consumption, a new combustion
    principle, the second generation of Bosch common rail fuel injection system, high economic benefit.
    Oil change interval is lengthen: euro Ⅱ consumption, road transport vehicles from the factory to change the oil for the first time, a maximum mileage of 30000 kilometers, so there is low transport cost.
    Specification

    Weight

    Curb weight (Kg)

    11800


    Gross vehicle weight (Kg)

    25000

    Dimension

    Length(mm)

    12500


    Width(mm)

    2550


    Height(mm)

    3900


    Wheel base (mm)

    5800+1400

    Performance

    Maximum driving speed (km/h)

    101


    Fuel consumption
    (1/100 km)

    35

    Cabin

    HW76 Long cab, with two seats and 1 sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air conditioner and high dumper

    Engine

    Model

    WD615.47(Euro II)


    Type

    Diesel Engine, 6-cylinder in line, 4-stroke, water-cooled, turbo- charged & inter-cooled, direct injection


    Horsepower

    371hp


    Maximum output Kw/r/min

    273/2200


    Maximum torque N.m/r/min

    1500/1100-1600


    Bore x Stroke

    126x130mm


    Displacement

    9.726L

    Gearbox

    SINOTRUK HW19710 transmission ,10 forward and 2 reverse


    I II III IV V VI VII VIII IX X


    14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1


    R1-13.91 R2-3.18

    Clutch

    SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

    Steering

    ZF8118 ( left hand driving) hydraulic steering with power assistance.

    Front Axle

    SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.

    Rear Axles

    SINOTRUK HC16 (2x16 ton loading capacity)Pressed axle housing, central double reduction with differential locks between wheels and axles .

    Brake System

    Service brake:dual circuit compressed air brake
    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Tires

    12.00R20 radial tire with 1 Spare tire ( total 11pcs)

    Electrics

    Operating voltage: 24V, negative grounded
    Batteries: 2x12V,165Ah
    horn, headlamps, fog lights, brake lights, indicators and reverse light.

    Oil Tank

    400L

    Box Size

    9.75x2.56x2.4m, bottom 3mm, side 1.5mm

    Color

    White

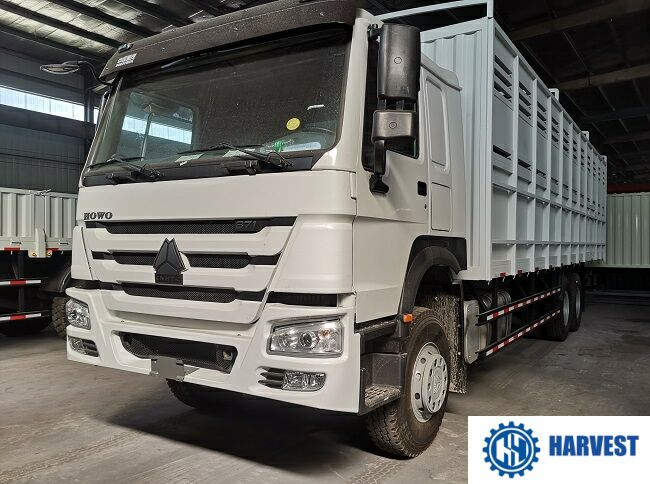

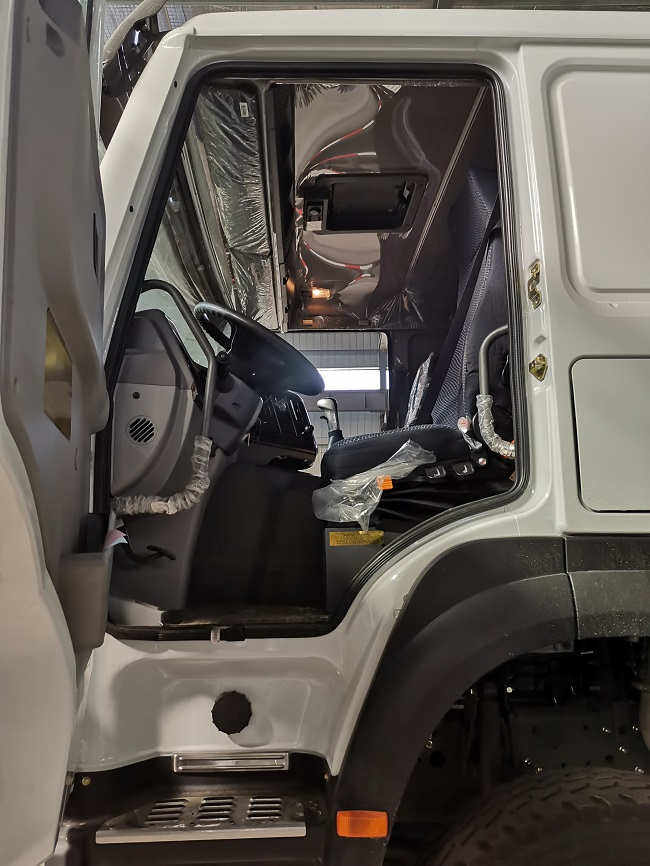

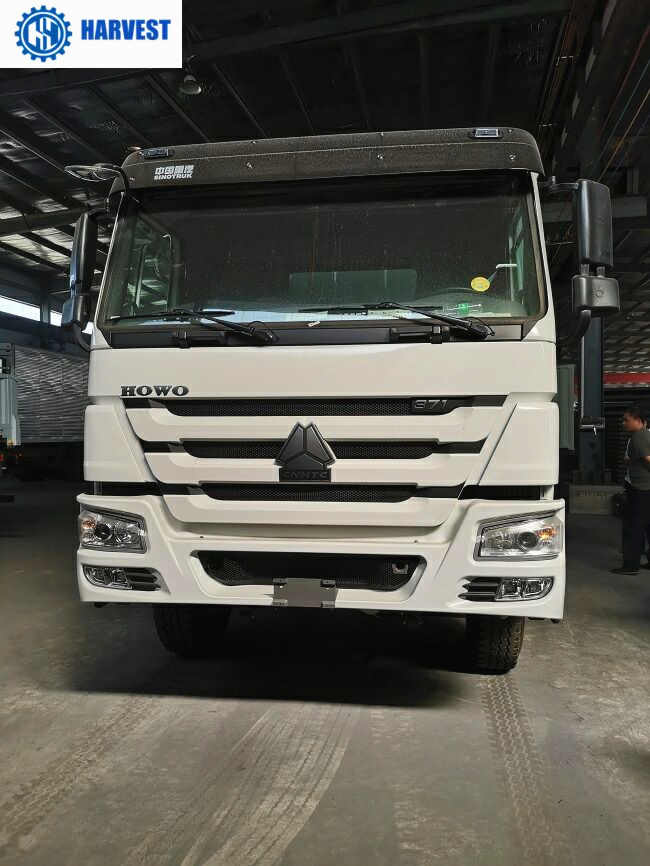

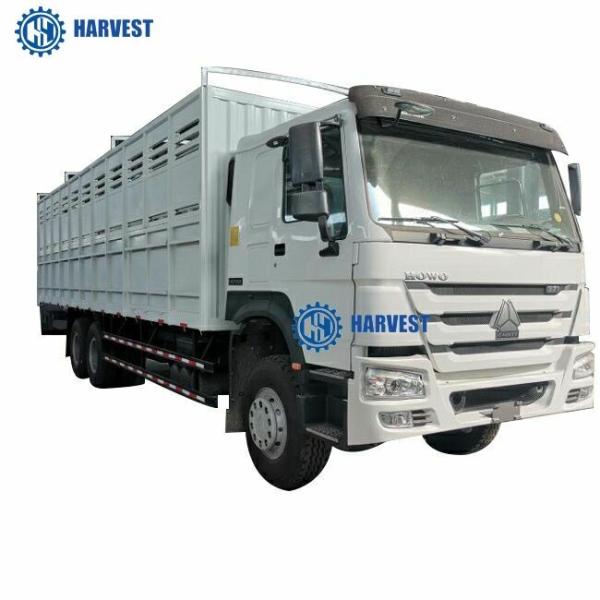

    Detailed Pictures



    Quality Vehicle Weight 25000kg Sinotruk Howo 6x4 371hp 30 Ton Capacity Heavy Cargo Truck for sale
