HOWO Left Hand Drive 371 Horse Power 40 Ton Cargo Chassis with 12
R24 Tyres
Sinotruk Howo 6x4 371hp Cargo Chassis without cargo body
Chassis Model: ZZ1257N5847W
Engine: WD615.47, 371hp, Euro II
Cabin: HW76, 2 seats & 1 sleeper, with A/C & deflector(cabin hat)
Front Axle: HF9 (drum). 1x9 ton loading capacity
Rear Axle: HC16 (drum), 2x16 ton loading capacity
Transmission: HW19710, 10 forwards & 2 reverse
Steering: ZF8118 hydraulic steering with power assistance
Tires: Radial 12.00R24, 10pcs+1 spare tire, with 2 U-Pull
Oil Tank: 400L+400L
Others: with trailer system
Color: yellow, white, blue, red for option
Trade Terms
Payment Terms: 30% deposit and balance before shipping
Delivery Time: 10 to 15 days
Shipping: by bulk vessel or roro
Warranty: one year
Model: We have 4X2, 6X2, 6X4, 8X4 available, which are widly used in
transporation.
Engine capacity: 266hp, 290hp, 336hp, 371hp and 420hp.
Specification
| Chassis Model: ZZ1257N5847W |
| Cabin | HW76 cab, with 1 sleeper, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating
system, exterior sun visor, safety belts, adjustable steering
wheel, air horn, A/C with transverse stabilizer, with 4- point
support fully floating suspension + shock absorber and deflector(cabin hat) |
| Engine | 4-stroke direct injection, 6-cylinder in line with water cooling,
turbocharged & intercooling Model: WD615.47, Euro2, 371hp. Displacement: 9.726L |
| Transmission | HW19710, 10F and 2 R Ratio: 14.28, 10.62, 7.87, 5.88 , 4.38, 3.27, 2.43, 1.80, 1.34,
1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Front Axle | HF9, 1x9000KGS steering with double T-cross section beam |
| Rear Axles | HC16, 2x16000KGS, Pressed axle housing, central single reduction
with hub reduction and with differential locks between wheels and
axles Ratio: 4.8 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling
flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm,
and reinforced subframe all cold riveted cross membersFront
suspension: 10 semi-elliptic leaf spring, hydraulic telescopic
double-action shock absorbers and stabilizerRear suspension: 15
leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake System | Service brake: dual circuit compressed air brakeParking brake
(emergency brake): spring energy, compressed air operating on front
shaft and rear wheelsAuxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4
KwAlternator: 3-phase, 28 V, 1500 WBatteries: 2 x 12 V, 165
AhCigar-lighter, horn, headlamps, fog lights, brake lights,
indicators and reverse light |
| Tires | 12.00R24, radial tires with one spare tire. With 2 U-Pull |
| Oil Tank | 400L+400L |
| Dimension | 12100x2500x3300mm |
| Others | With Trailer System |

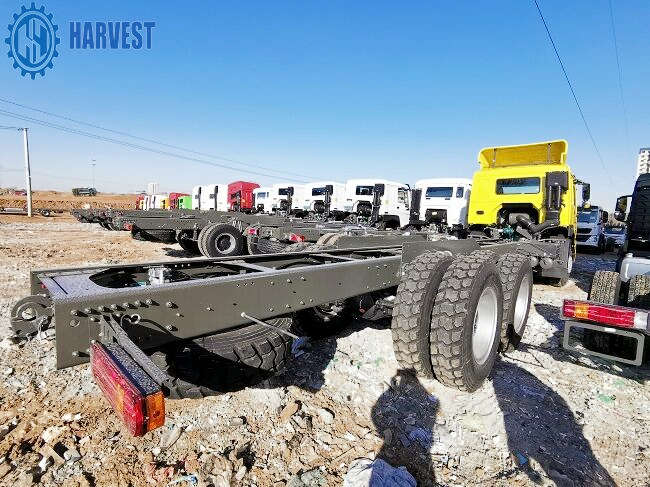

Detailed Pictures
