Sinotruk Hohan 6x4 30 Ton Tipper Truck To Togo with 315/80R22.5
Tyre
1. 6x4 dump truck can choose to lift in front or middle, 8x4 is
recommended for the front lift. We will recommend the most suitable
dump truck for you according to your needs.
2. Standard single-sleeper cab with air conditioner. Windshield
wiper system with the three-speed dual-arm, laminated windshield
with projected antenna, hydraulically damped adjustable driver's
seat and rigidly adjustable passenger seat with heating and
ventilation, outer sun visors, adjustable Roof flaps with stereo
radio/cassette recorder, adjustable steering wheel, air horn, fully
floating suspension with 4-point struts.
3. Tire options: 12.00-20 bias tires, 12.00R20 radial tires, Garner
12R22.5, 13R22.5, and 315/80R22.5 tubeless tires.
4. Heavy-duty five-plate spring: HF6-HF16 heavy-duty axle, strong
bearing capacity, can support and pull heavy mines and sand.
5. Quick dumping: precise angle design, cleaner and more convenient
unloading.
Model: ZZ3257V384JB1
Engine: WP12.400E201, 400HP, Euro II emission
Cabin: HOWO H77L, with one sleeper berth, with A/C
Wheelbase: 3800+1350mm
Gearbox: HW19710, 10F+2R speeds, manual type
Front axle: VGD95,drum type
Rear axle: HC16*2, 5.73 speed ratio
Steering: China D50 steering
Oil tanker: 300L
Tire: 315/80R22.5 tubeless tyres, 11 pcs, with one spare tire
Bumper: high position bumper, metal
Without ABS
Dump box: 5800*2300*1500mm, bottom 8mm, side 6mm, middle lifting
Color: white
Technical Specification of Hohan 400hp Tipper Truck
| Model | ZZ3257V384JB1 |
| Cabin | H77L(1 sleeper, air condition) |
Engine (Steyr technology, made in China)
| Model | WP12.400E201, 400hp |
| Fuel type | Diesel |
Displacement (L) Power(kW) | 11.596 294 |
Transmission | HW19710,10 forwards & 2 reverses |
| Front axle | VGD95 |
| Rear axle | HC16 |
Steering | ZF8118 |
| Tyre | 315/80R22.5 |
| Fuel tanker capacity (L) | 300 |
| Overall dimensions (L×W ×H) | 8545mm×2550mm×3400mm |
| Bucket | 5800mm×2300mm×1500mm Floor 8mm, Side 6mm, middle lifting |
| Approaching angle/Departure angle(°) | 19/23 |
| Overhang(front/rear) (mm) | 1500/1870 |
| Wheel base (mm) | 3825+1350 |
| Max speed(km/h)(km/h) | 75 |
| Curb weight(kg) | 12460 |
| Total Weight(kg) | 25000 |
Brake system
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
Electrical system
| Battery | 2x12V/165Ah |
| Alternator | 28V-1500W |
| Starter | 7.5Kw/24V |
| Other | Without ABS |
Detailed Pictures of Sinotruk Hohan Dump Truck

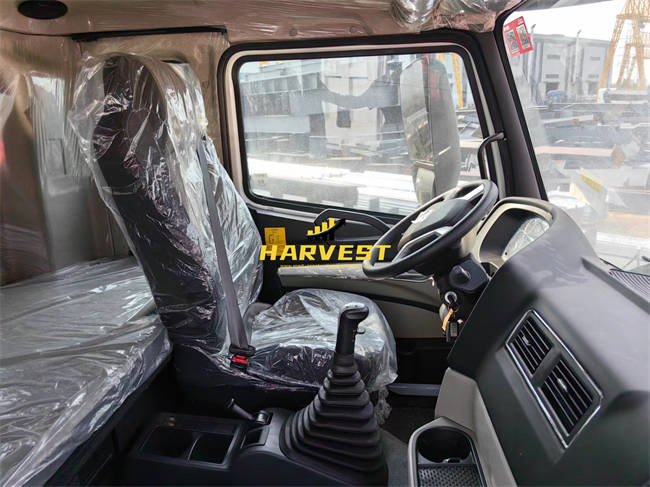

Hohan 30 Ton Dump Truck with H77L Cabin
