SHACMAN New 6x4 380hp 30 Ton X3000 Dump Truck For Sale in Malawi
Basic Configuration of X3000 Dump Truck:
1. Hydraulic main seat, four-point hydraulic suspension cab, A/C,
electric window lifter, common rearview mirror, manual turnover,
telescopic operation shaft
2. common air filter
3. metal bumper
4. daytime running light, hinged boarding pedal
5. radiator protection grid
6. 165Ah maintenance-free battery
SHACMAN X3000 dump truck has undergone many upgrades in terms of
comfort, such as the use of four-point airbag suspension damping in
the cab, and upgraded seats with better damping effects. For dump
trucks that often work on construction sites, good shock absorption
can greatly improve the driver's driving experience. Each upgrade
of the X3000 dump truck is based on customer needs. For example, it
has ultra-soft interior materials, a wrap-around instrument panel,
a double-sealed large sunroof and a 40mm thick sound insulation
pad, which can bring high-quality and low-noise experience; for
example, it has smart lines and eagle-eyed shading. The bull's
head-shaped front face looks very tall. For example, it can be
equipped with two engines: Weichai WP12 and Xi'an Cummins ISM11,
plus the "Golden" partner's Hande shaft and Fast gearbox to ensure
power and vehicle quality. It is equipped with an enhanced leaf
spring and drive shaft, and its load-bearing capacity has been
improved again; another example is the height difference in the
design of its accelerator and brake pedals, and the specially
designed ergonomic seat makes driving more comfortable. Shite
gearbox is equipped with a retarder, which not only saves brake
shoes and tires, but also makes driving safer. In addition, its
gearbox with overspeed gear can further save users' fuel
consumption.
With high-quality strength to create greater value for customers,
we provide a 1-year unlimited mileage warranty
Technical Specification of
SHACMAN X3000 Tipper Truck for Sale in Malawi
| Model: SX32556T384R X3000 |
| Dimensions/尺寸 |
| Truck Size/整车尺寸(MM) | 8429*2490*3450 |
| Wheel base/轴距(MM) | 3775+1400 |
| Engine/发动机 |
| Brand/品牌 | WEICHAI/潍柴 |
| Model/型号 | W10.380E22 |
| Power/功率(HP) | 380 |
| Displacement/排量(L) | 9.726 |
| Max. torque/最大扭矩 | 1600 N.m／1200-1600 rpm |
| Emmission Standard/排放标准 | Euro Ⅱ/欧二 |
| Transmission/变速箱 |
| Brand/品牌 | FAST/法士特 |
| Model/型号 | 10JSD180-QH50 |
| Gear Shift/档位 | 10-forwards, 2-reverses |
| Clutch/离合器 |
| Diameter/直径(MM) | Φ430 |
| Suspension/悬架 |
| Front Suspension/前悬架 | Spring suspension/弹簧悬架 |
| Rear Suspension/后悬架 | Spring suspension/弹簧悬架 |
| Axles/桥 |
| Brand/品牌 | MAN TECHNOLOGY/曼技术 |
| Front axle/前桥 | 9500kg, MAN |
| Rear axle/后桥 | 16000kg×2, MAN double reduction axle /双级 |
| Ratio/速比 | 5.92 |
| Brake/制动 |
| Running brake/行车制动 | Dual circuit compressed air brake/双回路气路制动 |
| Parking brake/驻车制动 | Rear wheel spring power brake/弹簧动力制动器 |
| Assistant brake/辅助制动 | WEVB/排气门制动 |
| Tyres/轮胎 |
| Model/型号 | 12.00R20(10+1pcs) |
| Fuel tank/油箱 |
| Tank capacity/容量(L) | 300 |
| Material/材质 | Aluminium alloy/铝合金 |
| Dimensions Dump Body/上装 |
| Dump body size/上装尺寸( MM) | 5600*2300*1500 |
| Thicknss/厚度 | Floor 8mm,side 6mm |
| Capacity/容积 (M³) | 19 |
| Lifting method/举升方式 | Front lifting/前举 |

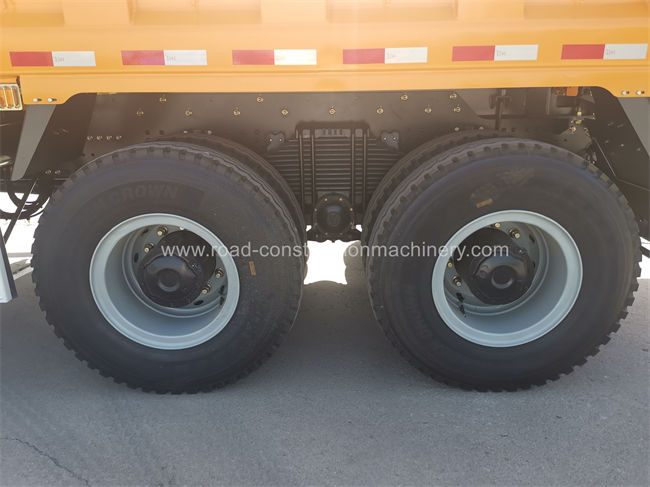

Detailed Pictures of SHACMAN 30 Ton 380hp Dumper Truck
