Howo 336hp 6x4 Left Hand Drive Diesel Dump Truck 25 Ton Loading
Capacity
Application: This model can meet the requirements of severe environment like
construction site and
mining area for short distance transportation of mining rock, soil
as well as engineering construction material.
Advantages
* Engine: WD615.69, 336 horse power, Euro 2 emission make the engine work
well even the oil quality is not so good.
* Transmission: SINOTRUK manual HW19710 gearbox, 10 forward and 2 reverse, easy
to drive.
* Steering: ZF hydraulic steering with power assistance
Spare Parts: You can easily get spare parts of it, which will
enable you to repair or replace some problem parts in time.

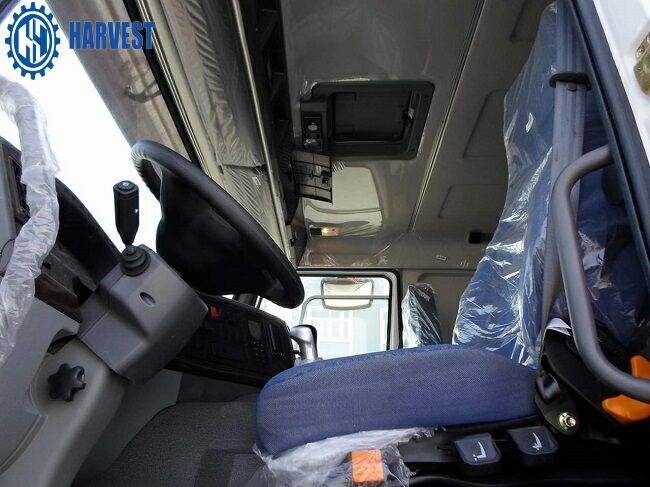

* Comfortable cabin with 4 point full -floating air suspension, adjustable steering

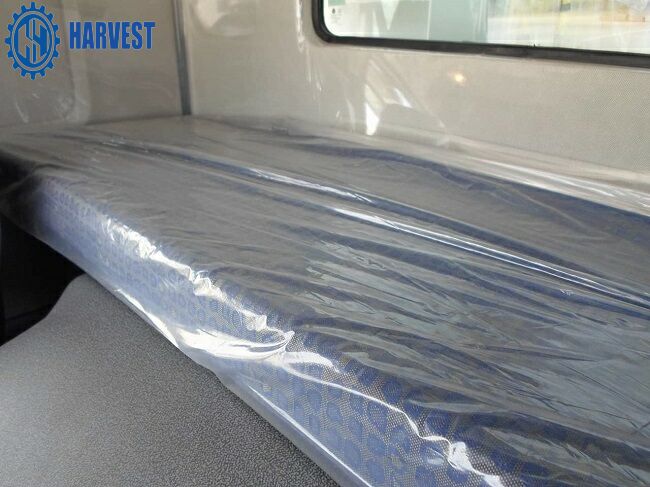

wheel with various heightsand angles, air suspension seat, MP3, 1 slepper for driver to have a rest. Double arm windscreen
wiper system with three speeds, damped adjustable driver's seat,
with heating and ventilating system, exterior sun visor, safety
belts, air horn, air conditioner, with transverse stabilizer and
shock absorber.
Our Service
1) Bucket shape, size, thickness, weight can be designed and
produced according to your request
2) Experienced sales team recommend you suitable truck for your
market
3) Fast production & delivery time after receiving payment
4) Perfect after-sales service to solve your problems or claims
Warranty
One year or 60,000 kilometers, whichever comes first from the date
of shipping in Bill of Lading.
Spare parts will be offered at factory price at any time once you
need.
Specification
| Model | ZZ3257N3847A |
| Cabin | HW76(1 sleeper, air condition) |
Engine (Steyr technology, made in China)
| Model | WD615.69, 336hp |
| Fuel type | Diesel |
Displacement (L) Power(kW) | 9.726 247 |
Transmission | HW19710,10 forwards & 2 reverses |
| Front axle | HF9 |
| Rear axle | HC16 |
Steering | ZF8118 |
| Tyre | 12.00R20 |
| Fuel tanker capacity (L) | 300 |
| Overall dimensions (L×W ×H) | 8545mm×2550mm×3400mm |
| Bucket | 5600mm×2300mm×1500mm Floor 8mm, Side 6mm, middle lifting |
| Approaching angle/Departure angle(°) | 19/23 |
| Overhang(front/rear) (mm) | 1500/1870 |
| Wheel base (mm) | 3825+1350 |
| Max speed(km/h)(km/h) | 75 |
| Curb weight(kg) | 12460 |
| Total Weight(kg) | 25000 |
Brake system
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
Electrical system
| Battery | 2x12V/165Ah |
| Alternator | 28V-1500W |
| Starter | 7.5Kw/24V |
| Other | Without ABS |
Truck Picture
