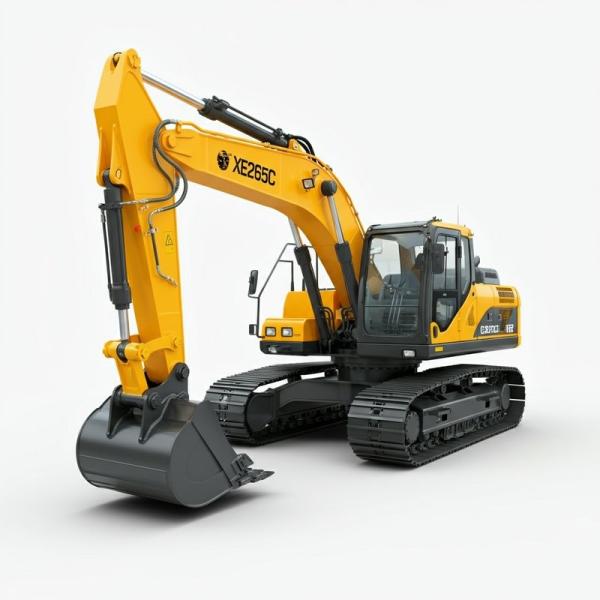

26 Ton Crawler Excavator XE265C With Japanese ISUZU 6 Cylinders
Engine Bucket 1.25m3
XE265C hydraulic excavator equipped with a backhoe boasts strong
power, sufficient sturdiness, reliable durability, low fuel
consumption, able to provide users with excellent driving and
control experience based on "cab low-frequency noise analysis
control", "improvement on excavator's sound vibration
comfortableness", "impact prevention of the control system" and
other advanced technology. This product can be used in road
engineering, construction of farmland water conservancy, port
construction and other earthwork and mining engineering.
Specification
Operating weight | kg | 25500 |
Bucket capacity | m³ |
1.05~1.25 |
Engine | Model | Engine | ISUZU |
CC-6BG1TRP-05 |
No. of cylinders | --- | 6 |
Output power | kW/ r/min | 135.5/2150 |
torque/speed | N.m | 637/1800 |
Displacement | L | 6.494 |
Main performance | Travel speed(H/L) | km/h | 5.9/4.0 |
Rotating speed | r/min | 11.3 |
Gradeability | ° | ≤35 |
Ground pressure | kPa | 50.1 |
Bucket digging force | kN | 179 |
Arm digging force | kN | 125 |
Maximum traction | kN | 194 |
Hydraulic system | Main pump | -- | 2 |
Rated flow of main pump | L/min | 2×256 |
Pressure of prime valve | MPa | 34.3/37 |
Pressure of travel system | MPa | 34.3 |
Pressure of swing system | MPa | 28 |
Pressure of pilot system | MPa | 3.9 |
Oil Capacity | Fuel tank capacity | L | 400 |
Hydraulic tank capacity | L | 240 |
Engine oil capacity | L | 25 |
Appearance size | Overall length | mm | 10160 |
Overall width | mm | 3190 |
Overall height | mm | 3100 |
Width of platform | mm | 2830 |
Length of crawler | mm | 4640 |
Overall width of chassis | mm | 3190 |
Width of crawler | mm | 600 |
Wheel base of crawler | mm | 3842 |
Crawler gauge | mm | 2590 |
Working scope | Min. ground clearance | mm | 485 |
Min. tail swing radius | mm | 2985 |
Max. digging height | mm | 9662 |
Max. dumping height | mm | 6810 |
Max. digging depth | mm | 6895 |
Max. digging depth at the range of level 8 feet | mm | 6750 |
Max. vertical wall digging depth | mm | 5480 |
Max. digging reach | mm | 10240 |
Min. swing radius | mm | 3850 |
Advantages
1. Ecological and economical
* ISUZU 135.5kW high-power engine is more fuel saving.
* New Japan Kawasaki main pump can ensure high efficiency and
reduced leakage.
* Efficiency main valve increases relief pressure and reduces
pressure loss.
* Smart matching technology ensures higher operating eficiency and
lower fuel consumption.
2. Multiple application
* Different boom, stick and bucket combinations maximize
utilization in different conditions.
* Multi-functional ielligent work tool control system can meet
diferent operating requirements such as digging, breaking and
dismantling.
* Instantaneous boost function copes with complex working
conditions.
3. Comfortable and safe
* Air Conditioner and Heater with Double stage air filter ensure
the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspension seat equipped with electric heating function.
* Integrated control panel and large display screen provide
multiple information.
* ROPS and FOPS Cab can improve cab safety.
