Name: Payload 45ton 40Ft Container Flatbed Semi Trailer Q345B Steel
Brand: Harvest
Price: 1 USD

Add to Cart

3 Axle 40Ft /45Ft Container Flatbed Trailer With 8 Container Locks Payload 45 ton

3 Axles 40ft flatbed trailer Product parameter:

Tare Weight	About 7.5T
Dimension	12500mm2490mm1575mm
Loading Capacity (T)	≤ 40 T / ≤ 30T
Axle	3 axles/ 2axles, 13 T FUWA /Huajing Brand
Rim	9.00-22.5 (special for export market)
Tire	12.00R22.5 Chengshan Brand 13pieces/ 9 pieces
Suspension	Mechanical suspension (America Type)
Spring leaf	90(W)mm13(Thickness)mm10 Layer
King pin	JOST brand 3.5inch bolts type
Support leg	China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm channel steel (Material is Q235steel).
Platform	3mm diamond platform
Side wall	Height is 800mm, you can choose freely.
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS	Without
Twist Locks	Eight pieces (Lifting type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

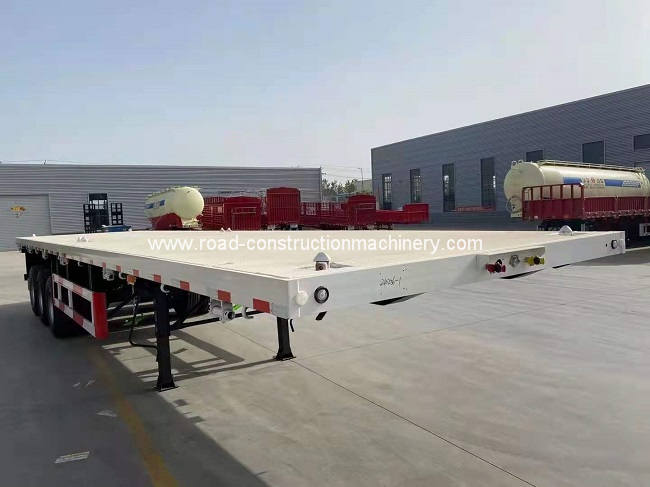

40feet flatbed container trailer truck picture
