Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire

Ask Lasest Price
Brand Name :	Harvest
Model Number :	40ft
Certification :	ISO CCC
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1000 units/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire

4 axle 60ton Shipping Container Transport flatbed Truck semi trailer

4 axle 60ton Transport flatbed Product Information

4 Axle flatbed semi trailer

Tare weight:7000kg

Payload 55000kg

Overall length:13000mm

Overall width:2500mm

Overall height:1500mm

Chassis:Heavy duty and extra durability designed i beam;opting for high tensile steel Q345,welded by automatic submerged-Arcprocesses.Top flange 14mm,width 140mm;middle flange 8mm;bottom flange 16mm;width 140mm

Axle number:3,Brand:Optional upon choice,capacity:13T

suspension:mechanical suspension or air suspension,

Leaf spring:Leaf spring or air bag

Floor:checkered plate

Tire:11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

Wheel rim:8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice

Kingpin:2"/3.5"bolt-in king pin

Landing gear:JOST brand two-speed,manual operating,heavy duty landing gear

Twist lock:12no.of ISO twist lock for 1*20ft,2*20ft, 1*40ft container

Vehicular applications:container (20ft,40ft..)transporrt

Braking system:WABCO RE6 relay valer;T30/30 Spring brake chamber;40L air tanks

Painting:Complete chassis sand blasting to clean rust,1coat of anticorrosive prime,2coats of final paint

Accessories:One standard tool box.

Spare tire carrier:2spare tire carrier without spare tires

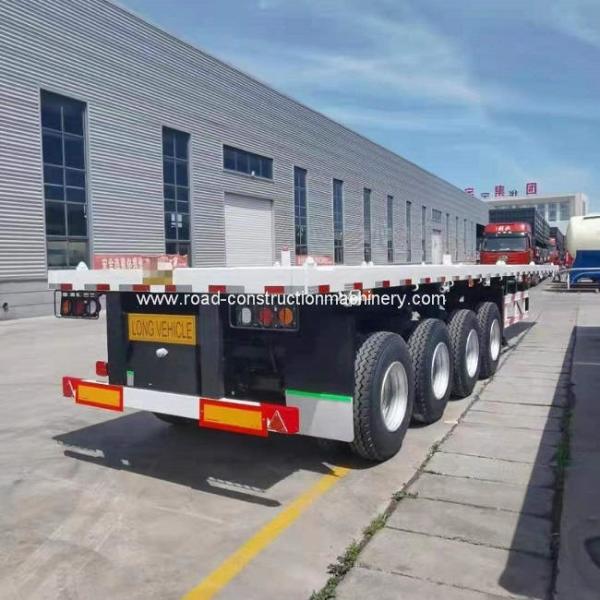

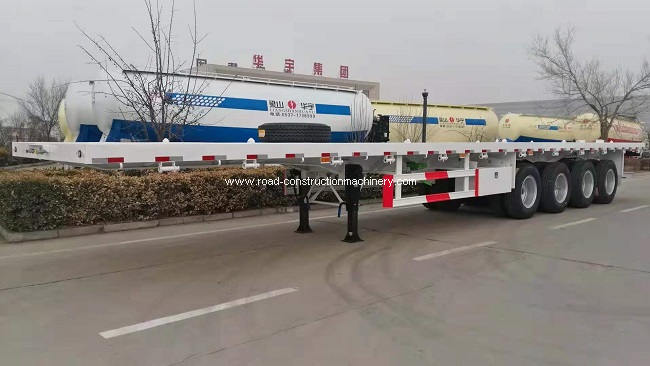

4 axle 60ton Transport flatbed Product picture
