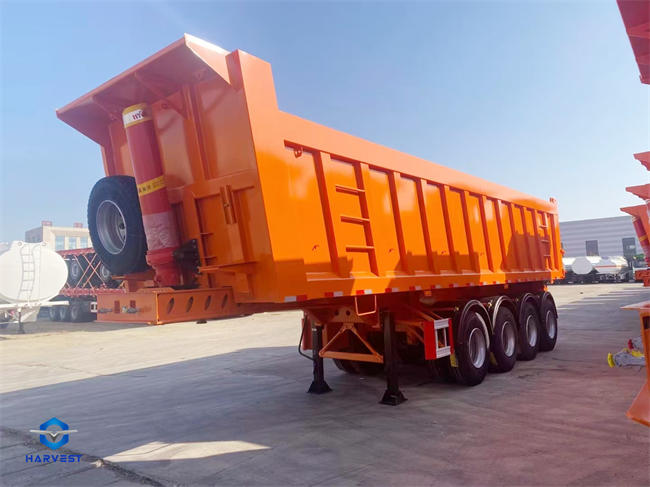

4 Axles 80 Ton Dump Trailer with Tubeless Tyres for Sale in Guyana
Hydraulic dump trailer is used to transport of bulk cargo, coal,
ore and build materials. One type belong to heavy duty dump
trailer, undertake the transport of large mining and engineering
task, usually matched with excavator. The end tipper trailer is
designed for using in stevedoring and transporting of the crushed
stone, soil, coal and earth material.
Steel Structure
Material: Q345
Main Beams: Advanced technology: Major parts and components of the trailer are
processed by advanced equipments. Longitudinal beams are finished
by automatic tracking submerged arc welding machine; all the
sub-assemblies are shot-blasted to improve paint adhesiveness and
are painted before assembling.
Chassis: To ensure optimal structure for cargo handling and larger payload,
the chassis is manufactured as a space frame structure of
high-strength steel, 16Mn steel welded longitudinal beam and
integrated cross member.
Axle: High performance domestic and imported axles with ABS system
optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted
with patented rod connecting design. It guarantees performance in
rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Hot-rolled structural steel welded 16Mn steel longitudinal beam and
cross member are assembled and welded for chassis assembly. The
finished chassis offers bending and deforming resistance with
proper rigidity and strength.
Tested and proven structure of cargo box is constructed with
profiled steel from, corrugated plate and mold pressed steel stake.
Reliable dual circuit air brake with quick release valve and quick
repines of wheel cylinder ensures safe on-road and off-road
operation.
Features
* Heavy duty front hydraulic cylinder
* ZY / FUWA / BPW axles
* Reinforced rear door
Product | U-shaped Dump Trailer |
| Volume | 45cbm |
| Loading capacity | 80T |
| Size | 10150x2500x3800mm |
Chassis (I beam)
| Top flange plate | Material and thickness | Q345 20mm |
| Bottom flange plate | Material and thickness | Q345 20mm |
Middle flange plate | Material | Q345 |
| Thickness | 12mm |
| Height | 530mm |
Box
| Thickness | 6mm |
| Height | 2000mm |
| Material | Q345 |
Floor | Material | Q345 |
| Thickness | 8mm |
| Floor type | Plate |
Running mechanism
| Cylinder | HYLW 214-5-7300 |
Axle
| Brand | ZY |
| Type | 13t |
| Number | 4pcs |
| Rim | Type | 9.0 |
| Number | 16 pcs |
Tire | Brand | Triangle brand |
| Type | 12R22.5 |
| Number | 16pcs |
| Suspension | 4axle Mechanical suspension |
Spring leaf | Leaf width | 90mm |
| Leaf thickness | 16mm |
| Layer/set | 10 Layer |
| King pin | Type | Bolts type |
| Diameter | 3.5 inch |
Brake system | Air tank | 45L air tanks |
| Brake chamber | 4 double spring brake chamber |
| Relay valve | WABCO |
Landing gear | Brand | JOST |
| Type | A300 two speed |
Accessories
| Spare tire carrier | One |
| Light | LED light |
| Voltage | 24v |
| Receptacle | 7 ways(7wire harness)and quick change type |
| Tool box | One piece |
| Painting | Polyurethane paint&anti-rust primer&sand blasting |
| Tools for trailer | Head wrench; spare wheel crank |
