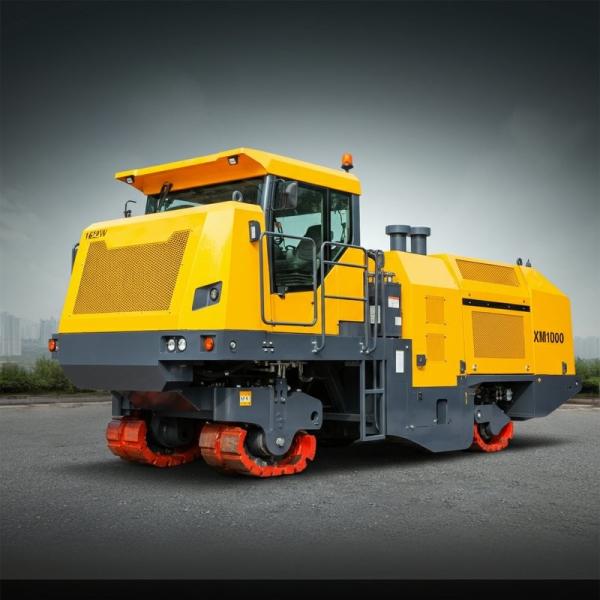

    162kW Road Milling Machine Depth 180mm XM1003 Road Construction Machinery

    Ask Lasest Price
    Model Number : XM1003
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 500 units/month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    162kW Road Milling Machine Depth 180mm XM1003 Road Construction Machinery

    Wheel Road Milling Machine Xm1003 XM1003 Milling Width 1m Depth 180mm

    XM1003 road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.

    Performance Characteristics:

    * This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.
    * Engine complies with European III /American III /China III emissions standards, green construction, reduces environmental pollution. With the fuel consumption at 36.7L/h under rated power, this engine features lower fuel consumption and better operation economy.
    * The full-hydraulic four-wheel drive traveling system is applied to provide powerful traction force.
    * The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.
    * The super-high capacity water tank and fuel tank (800L and 350L respectively) guarantee longer continuous working time and reduce the down time.
    * The limit load control technology is applied to automatically adjust the traveling speed based on the milling load and realize the maximum working efficiency on the precondition of protecting the machine systems.
    * The intelligent sprinkling control technology is applied so that the sprinkling is turned off automatically at the stop of milling and is turned on automatically at the restart of milling to save the manual operation steps.

    Specification

    Item
    Unit
    XM1003
    Milling drum
    Milling drum Milling width
    mm
    1000
    Milling depth
    mm
    180
    Tool spacing
    mm
    18
    Number of tools
    82
    Rotor diameter with tool
    mm
    700
    Engine
    Model
    SC9DK220G3
    Cooling method Water cooling
    Water cooling
    Number of cylinders
    6
    Rated power/speed
    kW/rpm
    162/2200
    Displacement
    L
    8.8
    Rated power consumption
    L
    36.7
    Comprehensive fuel consumption
    L
    12.3
    Emission Standard
    Euro III
    Electrical system
    V
    24
    Box capacity
    Box capacity Fuel tank
    L
    350
    Hydraulic oil tank
    L
    130
    Water tank

    L

    800
    Driving performance
    Driving performance Maximum operating speed
    m/min
    40
    Maximum speed
    km/h
    8
    Theoretical climbing ability
    %
    50
    Ground clearance
    mm
    180
    Tire
    Tire Tire Form Solid Rubber Tire
    Rubber Tire
    Front tire size
    mm
    645×300
    Rear tire size
    mm
    645×300
    Milling material conveying
    Milling material conveyor Belt width
    mm
    400
    Theoretical feeding capacity
    m3/h
    84
    Transport size
    Shipping Size Host Size (L×W×H)
    mm
    4690×2500×3500
    Host size (right leg swings into the frame) ( L×W×H)
    mm
    4690×1950×3500
    Folding conveyor size
    mm
    8050×1070×980
    Machine weight
    Machine Quality Work
    kg
    15600
    Front axle load (under working quality)
    kg
    6700
    Rear axle load (under working quality)
    kg
    8900
