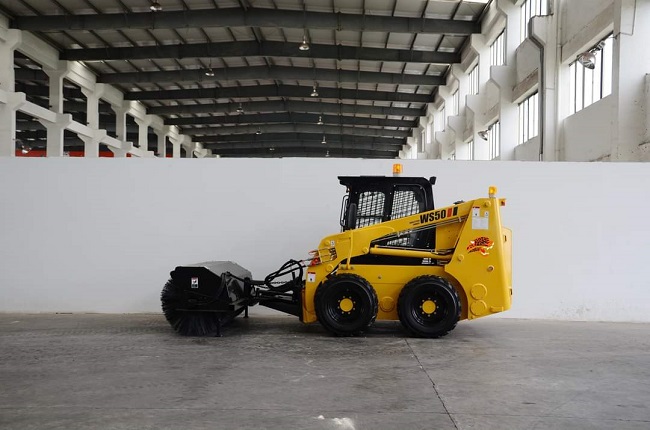

Multi-Function 4x4 Skid Steer Loader WS50 with Sweeper Xinchai 50hp
Diesel Engine
Multi-Function, High Cost Performance
New and high-performance Skid Steer Loader has been formally put
into production, is the domestic top-notch loader, no matter from
the appearance of products, heightlifting, weightlifting to
comfort. Owing to its easy operation, convenient maintenance and
wide applications, the loader has been stage for the use of
engineering work especially municipal engineering.
Main Features
1. Safe and comfortable operating environment
2. Daily maintenance and maintenance
3. World-class core accessories
4. Maximize machine productivity with the full range of tools.
Main configuration
Chinese skid steer loader With the full range of working tools, a
variety of skid steer loader accessories are available to maximize
the skid steer loader's productivity. This maximizes the
versatility and flexibility of our skid steer loader.
Standard configuration: bucket, air conditioning, vacuum tires.
Optional Configuration:
solid tires, Auger, backhoe, shovels (bull horns), buckets
(universal, high capacity, dust, practicality, lightweight
materials, versatile, industrial grabs, practical grabs), cleaning
tools (corners, Extraction, practicality), lawn Mower, cold milling
machine, fork (tray, industrial grab, practical grab,
practicality), hydraulic hammer, garden tillage machine, garden
hoe, material processing arm, power box ripper , hydraulic shears,
snow remover, stump grinder, trencher, etc Can be customized
according to customer requirements.
Specification
| Item | WS50 |
| Engine | |
| Model | Xinchai |
| Rated power (hp) | 36.8 |
| Rotation speed (rpm) | 2650 |
| Cooling | water |
| Steering controls | 2levers |
| Performance | |
| Rate Operating capacity (kg) | 800 |
| Tipping load(kg) | 1500 |
| Operating weight (kg) | 2835 |
| Bucket capacity (m3) | 0.4 |
| Speed (km/h) | 11.6 |
| Tire | 10-16.5 |
| Pump Flow (l/min) | 65 |
| pump pressure(bar/mpa) | 180 |
| High Flow(l/min) | 110 |
| Oil Tank Capacity(l) | 88 |
| Fuel tank Capacity(l) | 70 |
| Dimensions | |
| Overall operating height | 4058 |
| Bucket hinge pin | 3077 |
| Height to cab top | 2007 |
| bottom of level bucket, loader arm full raised | 2908 |
| Overall length w/o attachment | 2641 |
| Overall length with bucket | 3413 |
| Dump angle at max height | 43 |
| Dump height loader arm full raised | 2303 |
| Bucket on ground | 30° |
| Bucket angle at max.height | 99° |
| Reached loader arm full raised | 645 |
| Wheelbase | 999 |
| Ground clearance | 185 |
| Clearance circle front less bucket | 1230 |
| Clearance circle front W/72 dirct bucket | 2075 |
| Clear circle | 1627 |
| Rear Length | 1042 |
| Trend width | 1469 |
| Overal width(wheel edge) | 1740 |
| Width of bucket edge | 1780 |
Pictures
