    1200kg Tracked Skid Steer Loader TS100 With 0.55m3 Bucket 74.9kw

    Ask Lasest Price
    Brand Name : HARVEST
    Model Number : TS100
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    1200kg Tracked Skid Steer Loader TS100 With 0.55m3 Bucket 74.9kw

    1200kg Tracked Skid Steer Loader TS100 With 0.55m3 Bucket 74.9kw

    Skid Steer Loader TS100 with strong power and rich attachments, the skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.

    Strong and Efficient Power Transmission System
    The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
    The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
    The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

    Incomparable Multi-Functionalities
    The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
    Solid and Reliable Design
    The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.
    Flexible Operations
    The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

    Product Specifications

    Model numberTS100
    Performance parameter
    Rated load(kg)1200
    Maximum speed(KM/H)9-18
    Hydraulic flow(L/min)88
    Engine modelWeichai WP4.1
    Rated Power(kW)74.9
    Fuel tank capacity(L)90
    Operating weight(kg)4500
    Bucket capacity (m)0.55
    Dimension parameter
    Overall Length with bucket(mm)3700
    Without bucket length(mm)3000
    Height to bucket hinge pin(mm)3280
    Overall operating height(mm)4070
    Height to top of Cab(mm)2160
    Width with bucket(mm)2030
    Width(mm)1994
    Dumping height(mm)2500
    Dumping reach(mm)700
    Wheel base(mm)1500
    Bucket tipping angle at maximum (mm)104
    Wheelbase (mm)991
    Tread width(mm)1654
    Front turning radius(mm)2200
    Rear truning radius(mm)1742
    Angle of departure(°)20
    The bucket reverses the Angle at its highest(°)104
    Track width(mm)320*86
    Track ground length(mm)1500
    Ground clearance(mm)200
    Overall dimensions(mm)3700×2030×2160

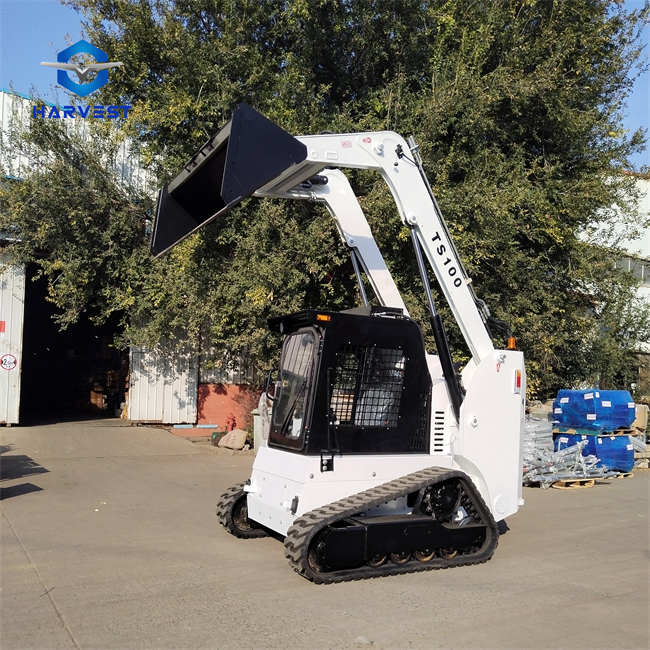

    China Brand Tracked Skid Steer Loader TS100 With 0.55m3 Bucket

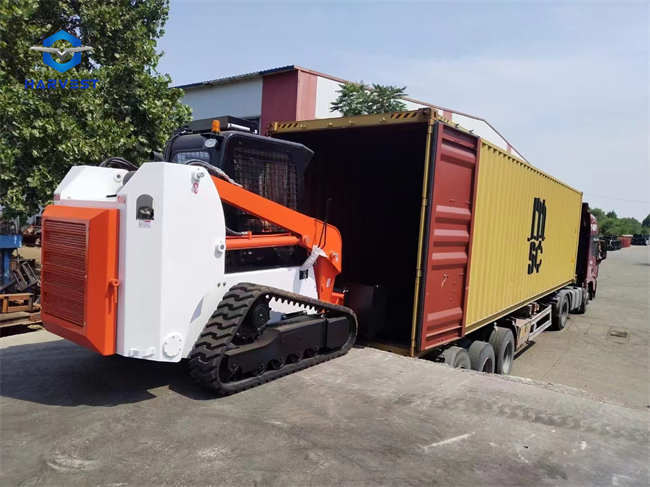

    TS100 Tracked Skid Steer Loader Will be Loaded in Container
